高级会员 | 王岳:艺术与科技的融合,灯光传承皇冠之上的荣耀




光源与玻璃幕墙的巧妙结合
独特的灯具和配光
将建筑打造成精美华丽的宝石皇冠
皇冠之上的荣耀代代传承
现代照明设计
让艺术与科技完美融合
Enterprise Headquarters
第一设计,为您精彩呈现!




照明总设计师:王岳 Jordan WONG

GODEN高敦国际照明设计创始人/设计总监
《第一设计》高级会员


Enterprise Headquarters

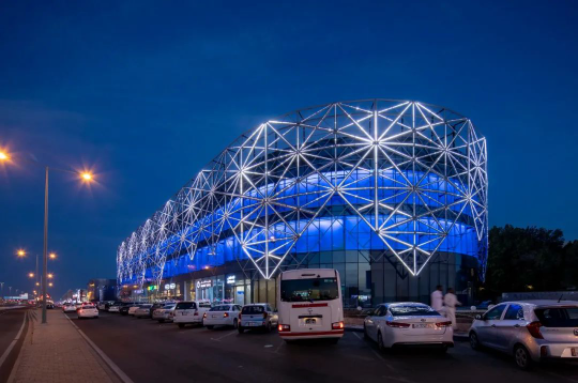

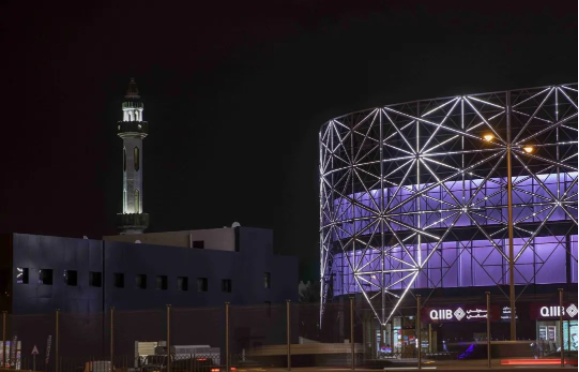

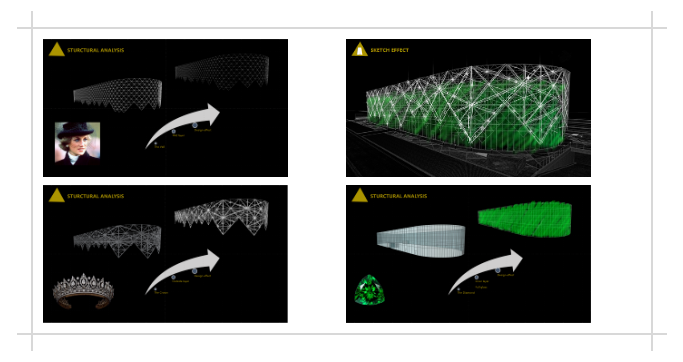

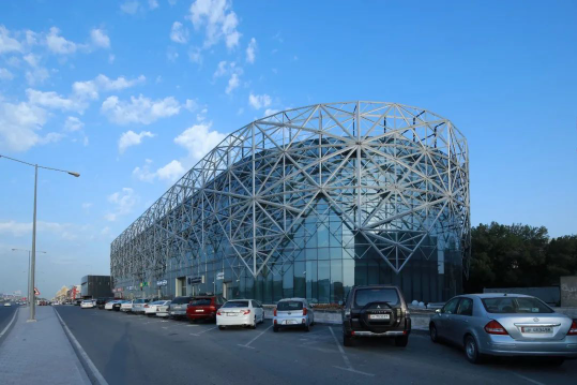

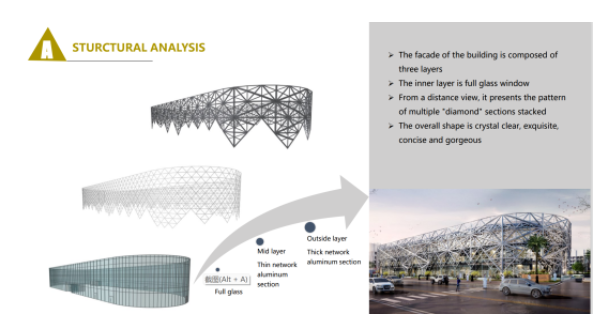

这是卡塔尔某家族企业的总部,照明设计以“传承”为主题,根据建筑设计的特点,将玻璃幕墙拆解出三个层次,并将光源巧妙地与每个层次融合,再根据整体的光效,定制独特的灯具和配光,最后通过对动态和色彩的控制和管理,将建筑打造精美华丽的宝石皇冠。强化了企业形象的同时,也象征家族企业代代相传,生生不息。


This is the headquarters of a family enterprise in Qatar. The lighting design takes "Inheritance" as the theme. According to the characteristics of the architectural, the façade had been disassembled into three levels, and the light source is skillfully integrated with each level. Then, to customize unique light distribution and fittings according to overall lighting effect. Finally, through the control and management of the dynamic and color, the building is created into an exquisite and gorgeous crown. It not only strengthens the corporate image, but also symbolizes that family businesses are passed down from generation to generation.




项目信息:

项目名称:传承 (企业总部)

项目地点:多哈,卡塔尔
照明设计:广州高敦照明设计有限公司



01

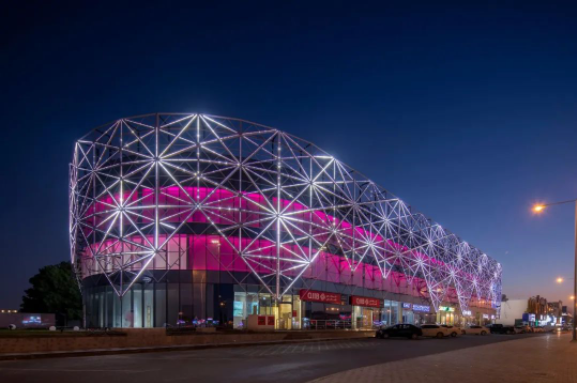

满钻的皇冠,代代传承的荣耀

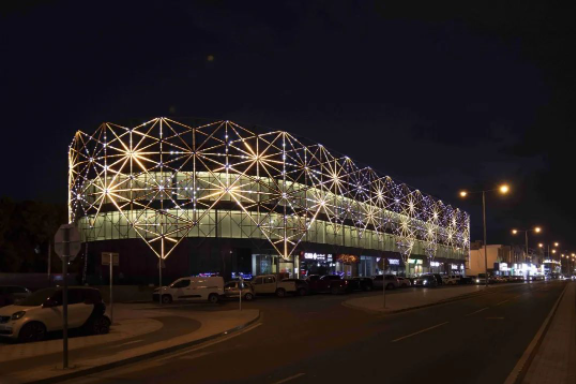

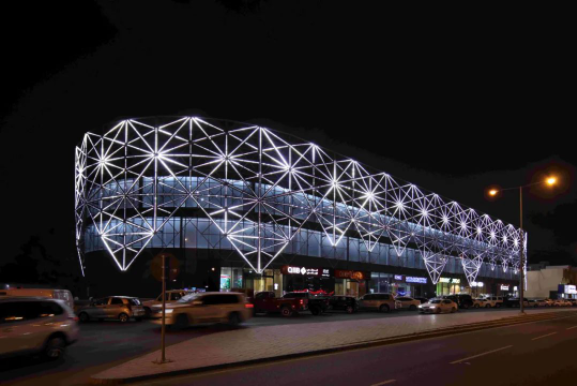

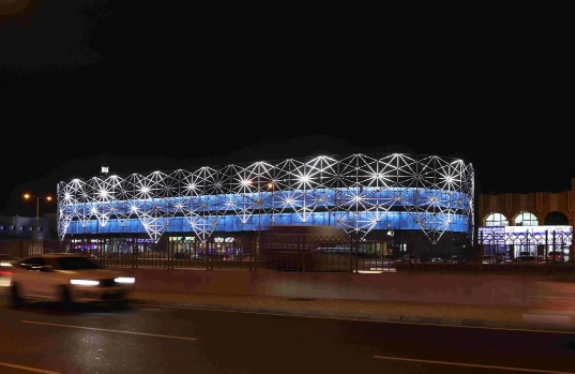

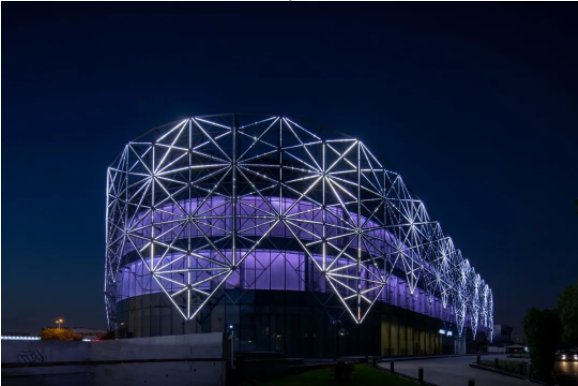

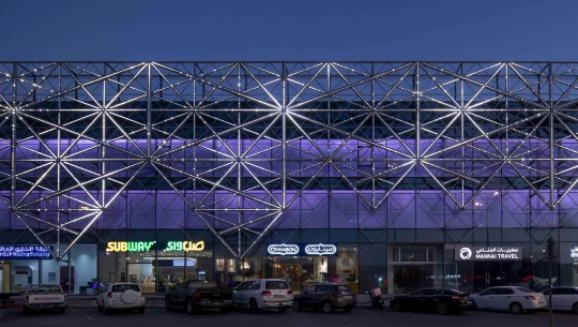

照明设计分别采用动态直接发光,绘画铝型材幕墙的伊斯兰几何图形;采用静态二次光,以遮阳窗帘为载体,呈现彩钻的颜色,同时让中间层网状铝材以剪影的方式呈现如面纱的效果;最后通过系统控制,以及特殊切割的透镜,呈现钻石的闪烁效果。最终以点/线/面结合,打造满钻皇冠。


The lighting design adopts dynamic direct lighting to draw Islamic geometry of aluminum facade; Lighting up the shading curtain with indirect light to present the color of diamonds. At the same time, the mesh aluminum material in the middle layer presents the effect of veil in the form of silhouette; With system control and the specially cut lens, to present the glittering effect of diamonds. Finally, the full diamond crown had been created by light & shadow composed of points, lines and surfaces.



创新 & 难点 Innovation & Difficulties


1)钻石闪光源的定制

设计师根据设计设想,提出可行的光源参数、透镜材料和切割要求,并与制造商合作开发钻石闪光源;为了满足铝型材幕墙的安装要求,定制线型灯的灯体外观;最后通过控制系统实现动态钻石闪烁效果。


2)光源与幕墙的融合

由于单元式铝型材幕墙结构复杂,为能实现“镶钻”的构思,设计师与幕墙结构设计师一同研讨,在原有的铝材上预留凹槽,安装钻石线性灯与电线的铺设。通过实验安装,确保灯具与铝型材的完美融合。


1)Diamond light customized

Designer proposed feasible light source parameters, lens material and cutting requirements, and work along with manufacturers to develop the diamond light source; In order to meet the installation requirements of aluminum profile facade, the linear light appearance should be customized, and the dynamic diamond flashing effect be realized by control system.


2)Integration of light source and Alu Facade

Due to the complex structure of the modular aluminum profile facade, need to work closely with Alu profile structural designer to finalize the grooves on Alu profile for diamond light fitting installation and wiring layout, to realize the effect of "Inlaying diamonds" on Alu profile.

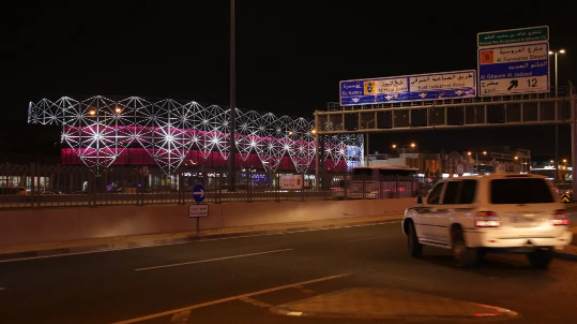

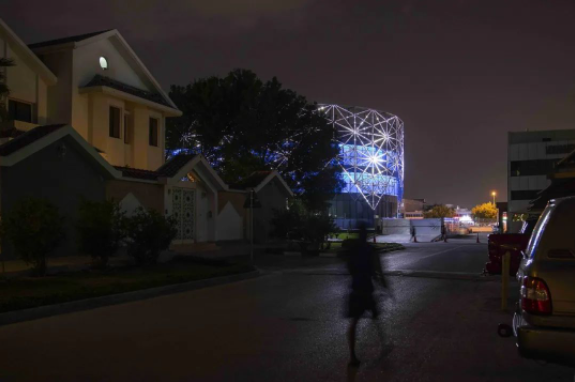

高敦考虑到项目位于主干道沿线及居民区,交通安全与人居环境光污染需要严格控制;不同时段需求的多模式配备,包括节能模式。


Considering that the project is located along the main road and in residential areas, traffic safety and light pollution of residential environment need to be strictly controlled; Multi-mode configuration required by different time periods, including energy-saving mode.
